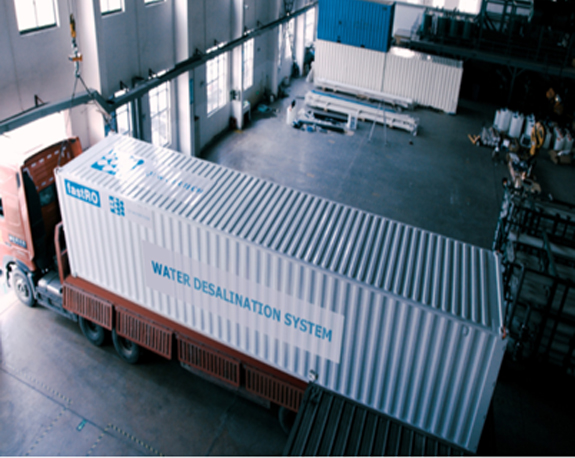

Seawater Desalination System
Comply with ASME, ASTM, IEC, and other internationally recognized industry standards. The fresh water capacity of fastROC is 50 to 2,000 m3/day. The water intake recommendation, extra pre-treatment and post-treatment customizing, installation supervision service, commissioning services could be provided upon request. Long service life: The wet parts are made of duplex, SS904L, UPVC or other plastics and the heavy-duty marine paint is used for frame and container

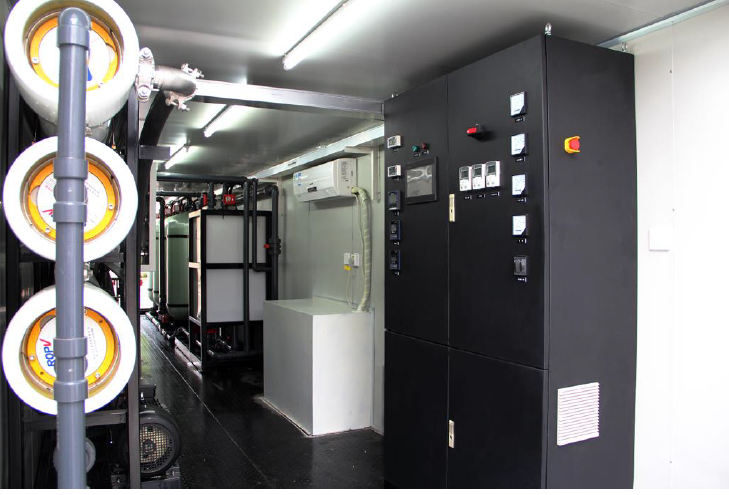

Easy operation: User friendly control by touch screen with remote control
Fast restoring feature: In case of malfunction, the whole system can be restored quickly by using standard parts
Upgrade on demand: We can add sensors according to customer needs, collect data remotely and provide operational consulting service
| Feature comparison table | Traditional desalination | fastRO® C | |
|---|---|---|---|
| Cost | Civil Works | 100% | 66% |
| Installation | 100% | 14% | |
| Commissioning | 100% | 15% | |
| Equipment | 100% | 95% | |
| Total | 100% | 82% | |
| Time | Civil Works | 100% | fastRO® C |
| Installation | 100% | 30% | |
| Commissioning | 100% | fastRO® C | |
| Total | 100% | 52% | |
Specifications:
| Feed water standards | ||
|---|---|---|
| Salinity(TDS)^(1)) | 20,000-42,000mg/L | |
| Temperature | 5-35°C | |
| Turbidity^(1)) | <40NTU | |
| Chemical Oxygen Demand (COD) | <10mg/L | |
| Ferrous (Fe^(2)+ ) | <0.1mg/L | |
| Manganese (Mn(2)+ ) | <0.1mg/L | |
| Oil and grease | <0mg/L | |
| Product water standards | ||
| Salinity (TDS) | <500mg/L | |
| pH | 6-8 | |
| Turbidity | <0.2NTU | |
| Notes: 1) if feed water turbidity is higher than the above specifications, extra prestreatsment might be needed. 2) if the seawater is free of harmful contaminants such as nitrate or fluoride ion, the produced drinking water meets the WHO Guidelines for Drinking Water quality, 4^(th) edition, 2012. | ||
| Techncal Data | Unit | C50 | C80 | C100 | C150 | C100E | C150E | C200E | C300E |
|---|---|---|---|---|---|---|---|---|---|
| Rated Product Flow | M3/H | 2.3 | 3.5 | 4.5 | 6.5 | 4.5 | 6.5 | 9.8 | 12.5 |
| L/S | 0.64 | 0.97 | 1.25 | 1.81 | 1.25 | 1.81 | 2.72 | 3.47 | |
| Rated Recovery Rate | % | 35 | 35 | 35 | 35 | 35 | 35 | 45 | 45 |
| Rated Feed Flow | M3/H | 6.6 | 10 | 12.9 | 18.6 | 12.9 | 18.6 | 21.8 | 27.8 |
| Min System Pressure | barg | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Max System Pressure | barg | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| RO Membrane Spec. | inch | 8,040 | 8,040 | 8,040 | 8,040 | 8,040 | 8,040 | 8,040 | 8,040 |
| RO Membrane Qty. | pcs | 4 | 6 | 8 | 12 | 8 | 12 | 18 | 21 |
| Weight(dry) | ton | 4 | 5 | 5 | 6 | 5 | 6 | 10 | 11 |
| Container size | ft | 20 | 20 | 20 | 20 | 20 | 20 | 40 | 40 |
| Rated Power | kW | 13.4 | 20.1 | 25.6 | 36.1 | 13 | 18.1 | 25.5 | 34.1 |
| Energy Consumption | KWh/M3 | 5.81 | 5.73 | 5.6 | 5.55 | 2.88 | 2.78 | 2.6 | 2.73 |
| Installed Power | kW | 18.9 | 25.9 | 36.2 | 52.2 | 22.7 | 37.3 | 20 | |
| Input | 3PH, 380 AC±10%, 50Hz | ||||||||
| Techncal Data | Unit | C400E | Cs500E | C700E | C1000E | C1200E | C1500E | C2000E |
|---|---|---|---|---|---|---|---|---|
| Rated Product Flow | M3/H | 16.7 | 21.5 | 32 | 42 | 52 | 65 | 84 |
| L/S | 4.64 | 5.97 | 8.89 | 11.67 | 14.44 | 18.06 | 23.33 | |
| Rated Recovery Rate | % | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Rated Feed Flow | M3/H | 37.1 | 47.8 | 71.1 | 93.3 | 115.6 | 144.4 | 186.7 |
| Min System Pressure | barg | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Max System Pressure | barg | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| RO Membrane Spec. | inch | 8,040 | 8,040 | 8,040 | 8,040 | 8,040 | 8,040 | 8,040 |
| RO Membrane Qty. | pcs | 28 | 35 | 56 | 70 | 84 | 105 | 144 |
| Weight(dry) | ton | 13 | 13 | 16+8 | 20+8 | 26+9 | 30+10 | 36+10 |
| Container size | ft | 40 | 40 | 40+40 | 40+40 | 40+40 | 40+40 | 40+40 |
| Rated Power | kW | 48 | 60.3 | 87.3 | 113.6 | 141.8 | 183.1 | 221.8 |
| Energy Consumption | KWh/M3 | 2.88 | 2.8 | 2.73 | 2.71 | 2.73 | 2.82 | 2.64 |
| Installed Power | kW | 61.3 | 86.8 | 134.9 | 161.9 | 213.9 | 265.9 | 320.9 |
| Input | 3PH, 380 AC±10%, 50Hz | |||||||
